Description
MECER

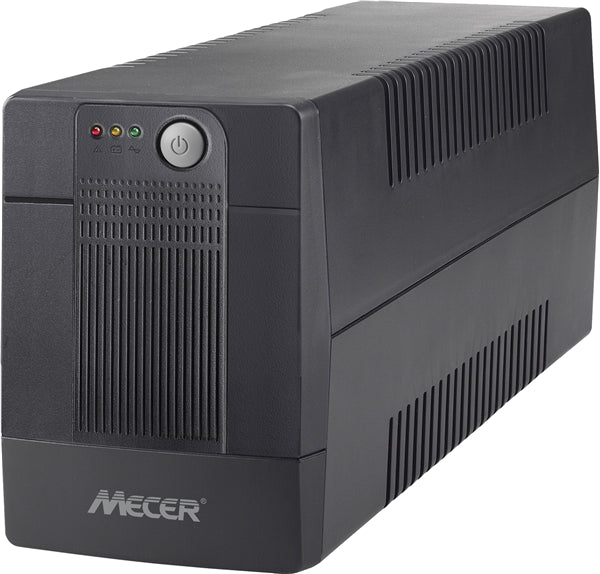

MECER 1000VA LINE INTERACTIVE UPS (Uninterruptable Power Supply)
Product Code ME-1000-VU
EAN Code ME1000VU
Features
Microprocessor control guarantees high reliability
Boost and buck AVR for voltage stabilization
Auto restart while AC is recovering
Simulated sine wave
Off-mode charging
Cold start function
USB communication port and RJ-11/RJ-45 protection
Overload, discharge, and overcharge protection
Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC
Specifications
Model ME-1000-VU
INPUT
Capacity
1000 VA / 600 W
Voltage
110/120 VAC or 220/230/240 VAC
Voltage Range
81-145 VAC / 162-290 VAC
AC Voltage Regulation (Batt. Mode)
±10%
Frequency Range (Batt. Mode)
60Hz or 50Hz ± 1 Hz
Transfer Time
Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)
Simulated Sine Wave
BATTERY
Battery Type & Number
12 V/7 AH x 2
Typical Recharge Time
4-6 hours recover to 90% capacity
ALARM
Battery Mode
Sounding every 10 seconds
Low Battery
Sounding every second
Overload
Sounding every 0.5 second
Fault
Continuously sounding
PHYSICAL
Dimension, D x W x H (mm)
350 x 146 x 160
Net Weight (kgs)
8
ENVIRONMENT
Humidity
0-90 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 40dB
USB Port
Windows
2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Note:
A UPS is not designed to provide continuous power, merely a window period that allows a computer or other user to finalise the work at hand and shut down. It's ability to do this is dependent on the number of devices connected to the UPS.
To establish what you can and cannot connect, calculate the total wattage you need to supply and ensure that the UPS you purchase meets that requirement.
What's in the box
1x UPS Unit
2x MALE TO FEMALE EXTENSION POWER CORD IEC C13-C14 (From UPS to PC)
1x USB Cable (From UPS to PC)
1x Driver Disk
